A small CNC machine.

Mechanical Bits

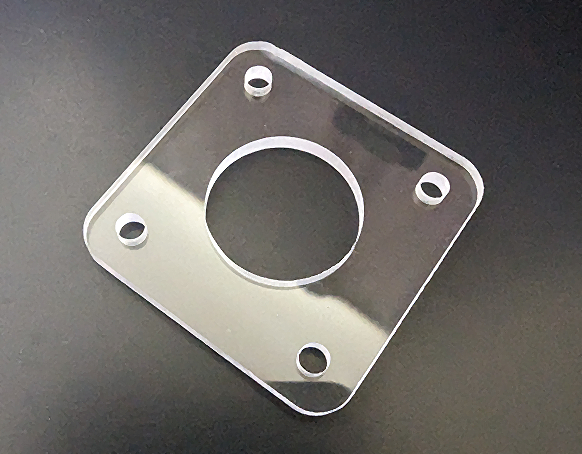

Acrylic

Aluminum

3D Prints

Cable clips, controller supports, enclosure handle and connectors, controller mount, power supply enclosure, terminal panel

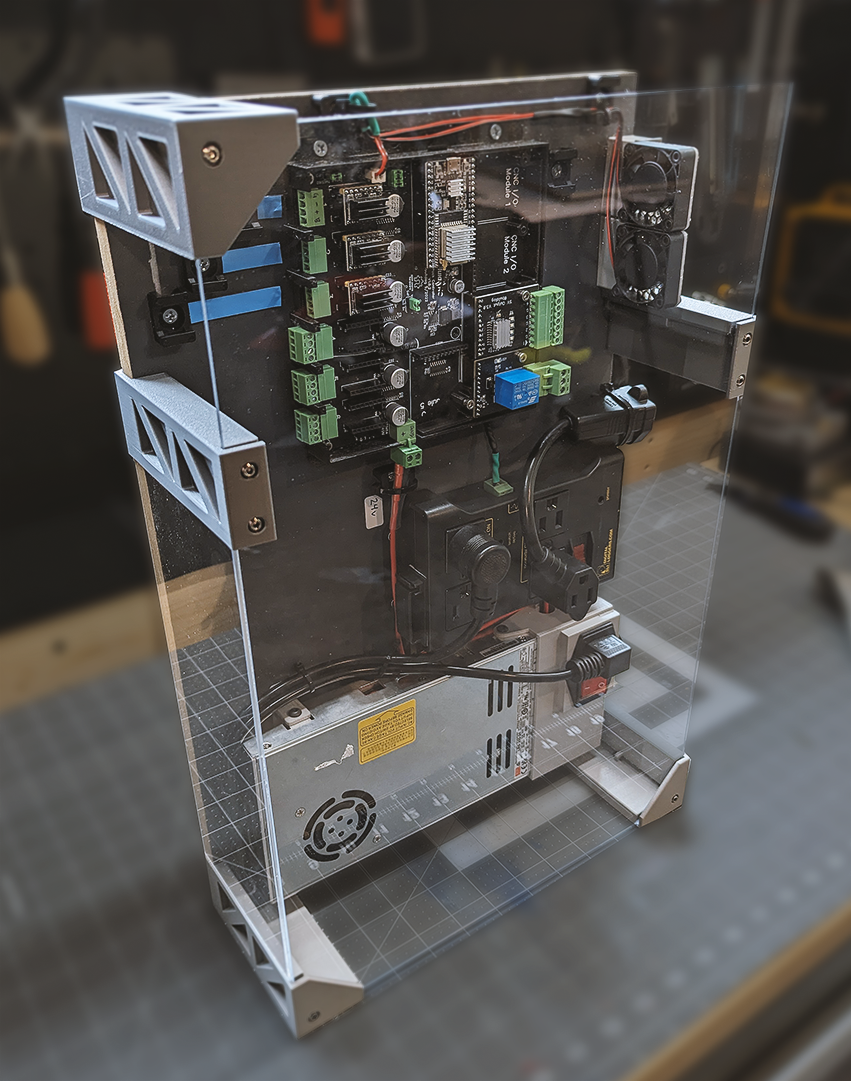

Controller

Specs V1

• Brain
  • 6-Pack CNC Controller
  • FluidNC
  • TMC5160 V1.3 Stepper drivers
  • IoT Relay for Spindle/Router
  • LRS-350-24 Power Supply
  • Generic DC Fans and LED strips
  • Generic Camera
  • Raspberry Pi 4 with Touchscreen inside 3D Printed casing
• Mech
  • Makita RT0701C
  • Spindle Mount
  • Generic 3020, stripped down, rebuilt Z axis and linear rails

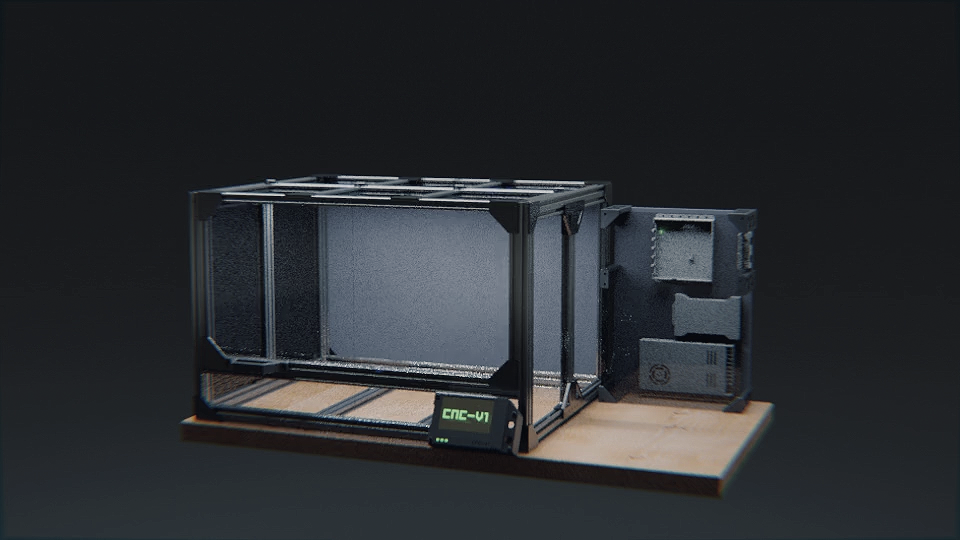

  • Enclosure is 2020 and 2040 extruded aluminum with hinges
  • Too many 3D printed panel clips
  • Clear Acrylic Sheets cut to flush fit the frame
  • 3D printed handle and mounts
  • Z - Axis
    • Nema 23 Stepper (1.90Nm)
    • 1605 Ballscrew - BK12/BF12 end
    • 2x Linear Rails MGN12H
  • X-Axis
    • 17HS24-2104S (0.65Nm)
    • 2x Linear Rails MGN15H
    • 8mm Lead Screw
  • Y-Axis
    • 17HS24-2104S (0.65Nm)
    • 2x 12mm linear rods
    • 8mm Lead Screw
